SilverCut/Maverick - Hypertherm Fault Codes
Sometimes you will get fault alarms on your Powermax. You will see an
amber light on the front of the system and a 0-## code
on the screen. These will show if you have issues like low air, a stuck

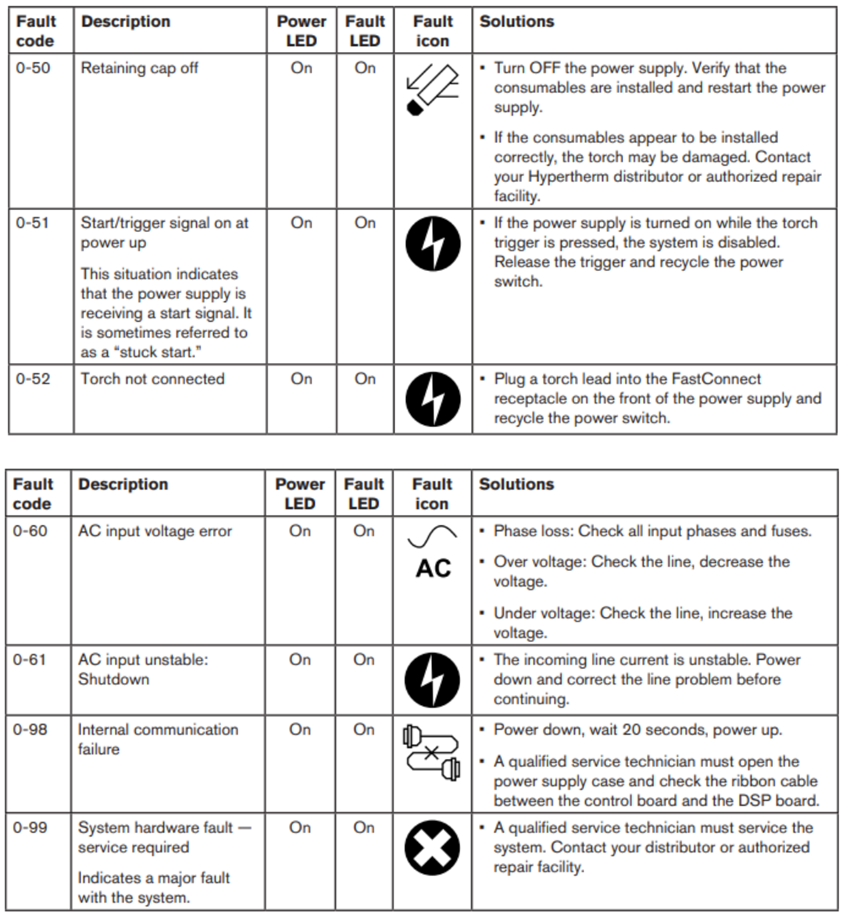

consumable or the retaining cap is loose. Use the following charts to determine
the cause of the alarm. These faults codes can be found on page 5-3 in the
Powermax manual.
